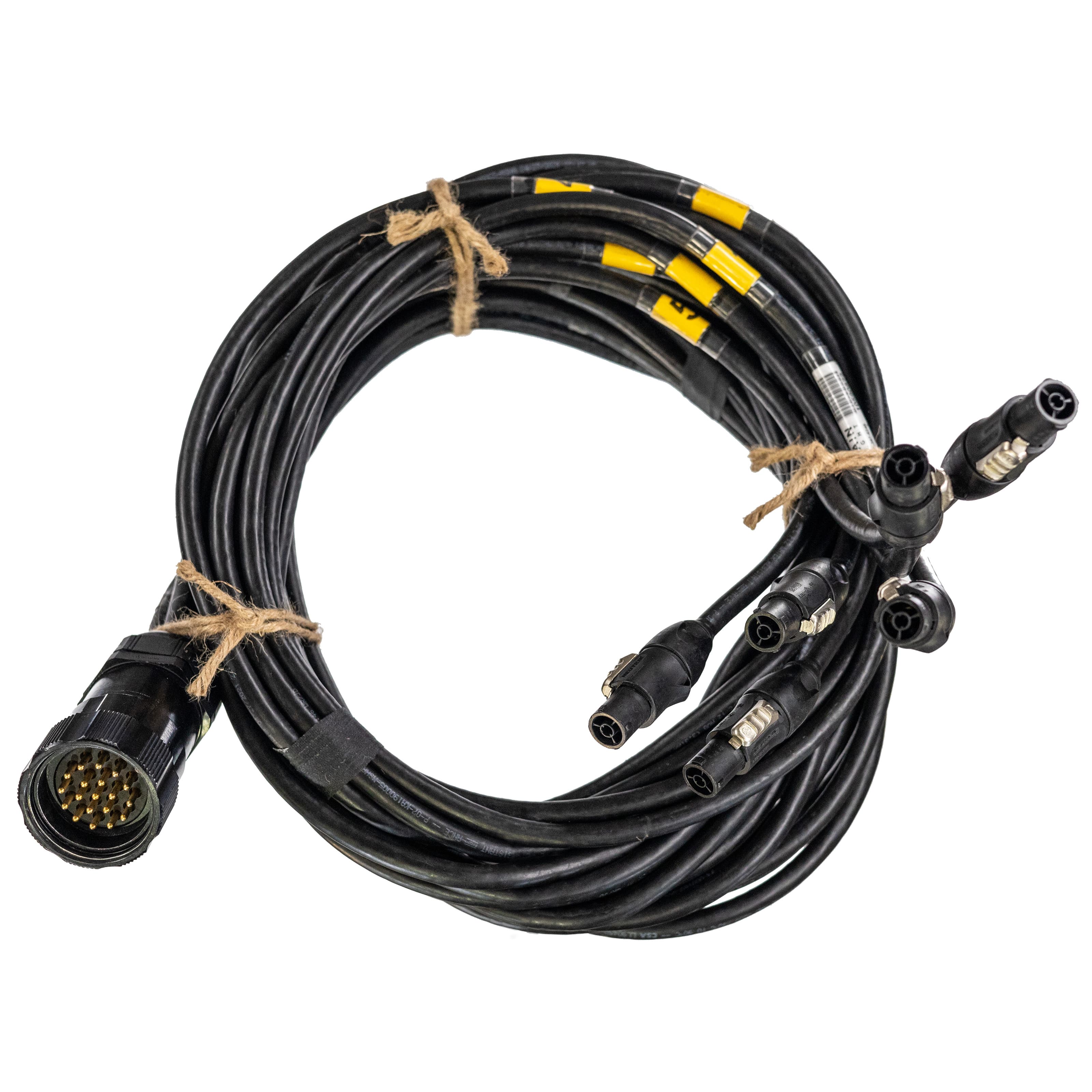

Break Out -- F Powercon TRUE1 12ga -- 12' (6 Circuit)

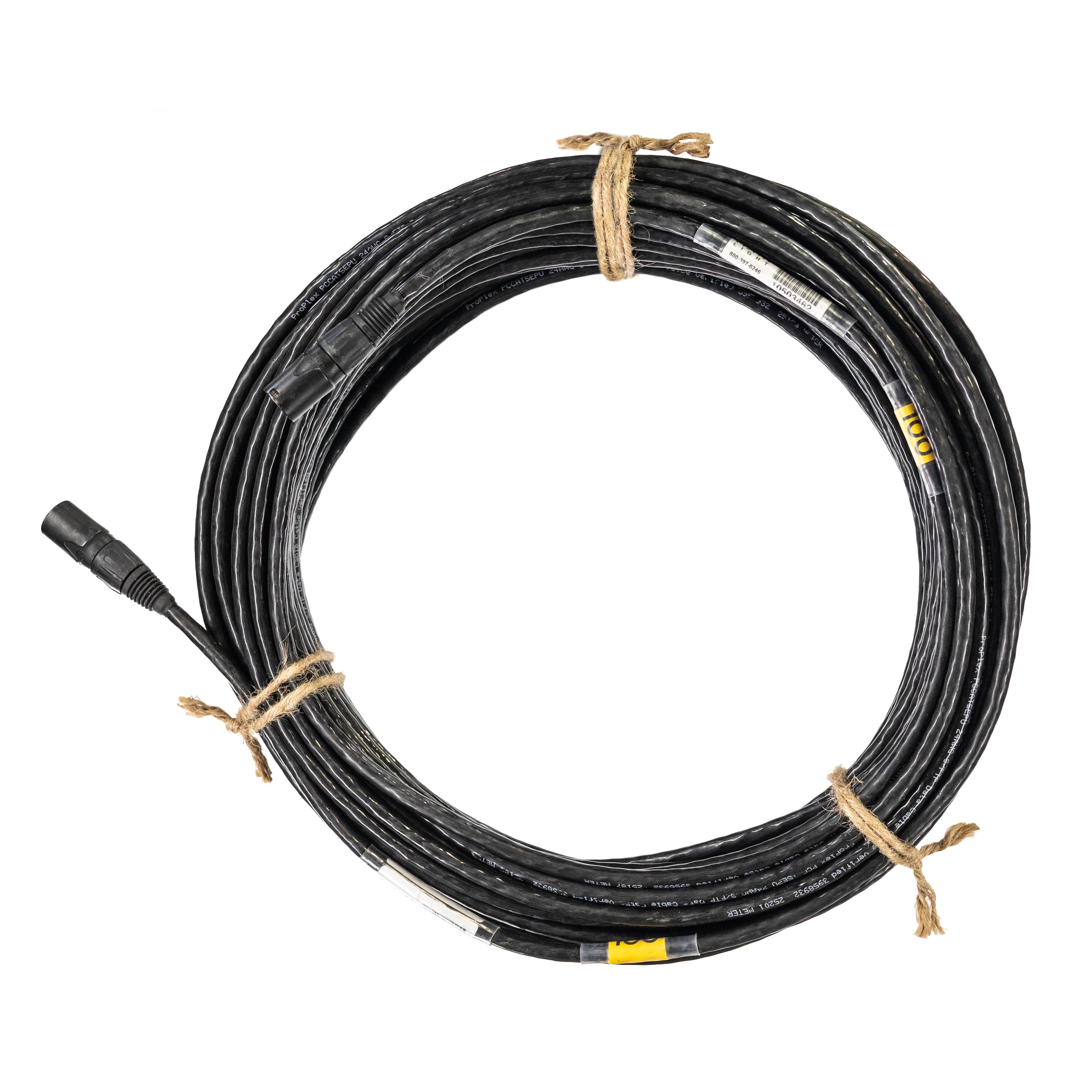

Cable -- EtherCON -- 100'

Cable -- EtherCON -- 25'

Cable -- EtherCON -- 50'

Cable -- EtherCON -- 75'

Cable -- L6-20 12/3 -- 5'

Cable -- L6-20 12/3 -- 15'

Multi 12Ga -10' (6 Circuit)

Multi 12Ga - 25' (6 Circuit)

Cable -- PowerCon -- 25'

Cable -- PowerCon -- 5'

Cable -- PowerCon -- 50'

Cable -- PowerCon True1 -- 10'

Cable -- PowerCon True1 -- 25'

PowerCon True1 - 5'

Cable -- Titan Charger -- 50'

Cable -- 5pin DMX -- 75'

Cable -- 5pin DMX -- 300'

Source 4 Par

ACME

Astera

Ayrton Digital

CHAUVET

ChromaQ

CREAMSOURCE

DiCon

HIGHEND

LITEGEAR

MARTIN

PORTMAN

PROLIGHTS

ROBE

Cables

Clearance

Controllers

Distribution Panels

IP65 Lighting (Outdoor Rated)

LED Lighting

Motors / Rigging

Moving Lights

Source Four

Special Effects

Specialty Lighting

Truss

TV-Film Lighting

<h3>Application</h3>

<p>(24) circuits of either 120 VAC or 208 VAC make an ideal distribution for entertainment lighting.</p>

<h4>Specifications</h4>

<ul>
	<li><strong>Input:&nbsp;</strong>(5) 16 Series Cam-type panel mount Male devices, RGN</li>
	<li><strong>Thru:</strong>&nbsp;(5) 16 Series Cam-type panel mount Female devices with protective covers, RGN</li>
	<li><strong>Main Breaker:</strong>&nbsp;200 Amp</li>
	<li><strong>Output:</strong>&nbsp;(4) 6-circuit, 120V LSC19 receptacles and (4) 6-circuit, 208V LSC19 receptacles (parallel)</li>
	<li>(3) NEMA L21-30, 30 Amp locking receptacles</li>
	<li>(6) 20 Amp, 120V NEMA 5-20 duplex receptacles</li>
	<li><strong>Overcurrent Protection:</strong>&nbsp;(24) 20 Amp, 2 Pole branch rated circuit breakers</li>
	<li>(3) 30 Amp, 3 Pole branch rated circuit breakers</li>
	<li>(6) 20 Amp, Single Pole branch rated circuit breakers</li>
	<li><strong>Dimensions:</strong>&nbsp;26&quot; L x 24 &quot;W x 30&#39; H</li>
</ul>

<h4>Features &amp; Benefits</h4>

<ul>
	<li>Extruded aluminum frames combined with high density polyethlene (HDPE) enclosure panels create lightweight yet remarkbly strong and extremely durable rack enclosures</li>
	<li>Front and back rack doors have &quot;snap-in&quot; latches for ease of access</li>
	<li>All rack hardware is recessed on HDPE panels to protect from breakage and there are no exposed latches when doors are removed</li>
	<li>All 19&quot; rack panels are laser engraved for clear and concise identification</li>
	<li>100% rated, electronic main and magnetic branch circuit breakers eliminates worry of thermal tripping</li>
	<li>LED power indicators, including discrete six (6) circuit arrays for multipin receptacles, provide clear live circuit identification</li>
</ul>


Ideal for stage and studio, our certified rolling racks adapt to varying power needs on the go, perfect for dynamic touring environments.

Purchase the LEX 24 120v / 208v Viceroy Power Rack

LEX 24 Circuit 120v/208v Viceroy Power Rack

LEX24120208V

Once your rental quote is requested, a representative will contact you to discuss availability, pricing, shipping method and costs.
